Pegasus+

Pegasus+ is a sophisticated and highly versatile pressure control system with integral 2 way GPRS communications

More details...

Availability : price on request

Pegasus+

Pegasus+ is a sophisticated and highly versatile pressure control system with integral 2 way GPRS communications. Key Features include:

  • Multi-point time based control for profiled control even where a flow meter is not available.
  • High performance flow modulation control with multiple table options.
  • Full closed loop, self learning automatic control can be enabled if required using data from
  • CP logger and dedicated web software includes multiple CP and time variable CP targets
  • Multiple alarm options
  • Full 2-way telemetry in all modes
  • Full main and secondary channel logging capability
  • WITS Option

Modulated Control without a Flowmeter

In many markets PRV’s are installed without an “in line” flowmeter. Pegasus+ features the capability to set target pressures by time, flow or a combination with different table settings per day of the week. This combined with intelligent extrapolation between target points means a sophisticated level of targeted control can be achieved even on a time basis.

Advanced Two Way Communication

The latest advances in HWM data logging communication and network connection technology have been incorporated into Pegasus+, which features integral GPRS, GSM, PSTN and SMS. The bi-directional telemetry can be used to trigger alarms or to change the exact regulated pressure remotely. Firmware can be updated remotely, which helps to make the unit future proof and minimises expensive site visits.

Innovative Fast Logging Channel

In addition to its main channel, Pegasus+ features a secondary channel for fast logging down to one second intervals. This is invaluable when a more detailed investigation of events such as pressure spikes and ‘true’ minimum night flow are required.

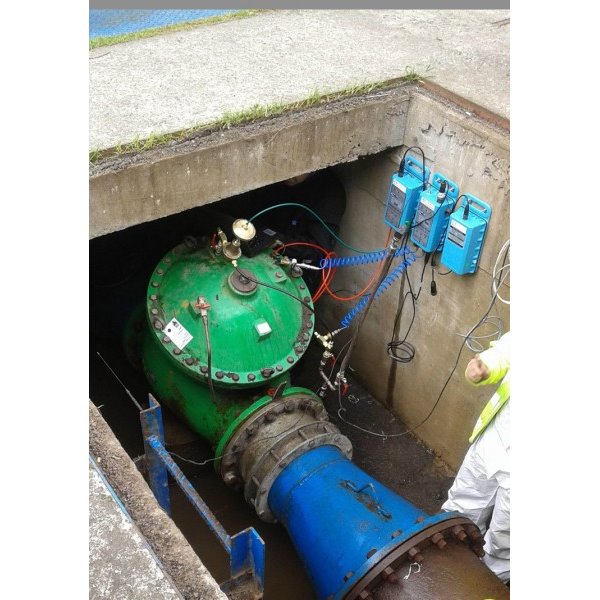

Easy Installation for Peace of Mind Operation

Pegasus+ uses HWM’s proven actuator which is easily installed with minimum disruption to the PRV and features mechanical fail safes to ensure pressure even in extreme failure conditions.

Sophisticated Software

Pegasus+ uses a Tablet or PC based App for easy set up and programming, and is compatible with the HWM Online web viewer for easy and convenient access to data via the internet. In addition Pegasus+ PC software provides full automatic closed loop operation, including multiple CP’s auto-learning, alarm functions and auto updates to 5 minute intervals if required. Closed loop functionality can be used in flow and time based modes. Tables on Pegasus+ software can be set for 96+ values of flow/pressure or time/pressure



Key Features

  • Enables intelligent pressure control proven to minimise leakage and reduce the frequency of pipe bursts.
  • Multi point control gives great flexibility to modulate pressure according to demand throughout the day.
  • Allows detailed multi-point time based PRV Control without a flowmeter.
    Latching solenoids can fully open or close the valve against settings in the controller in response to extreme or emergency situations.
  • Pressure fail safe is set by default to an acceptable output pressure.
  • Integrated low cost GPRS telemetry enables almost real-time monitoring and remote control as required.
  • Innovative secondary logging channel enables one second fast logging for analysis of events and transients.
  • Tablet or PC based App allows easy set up and programming functionality.
    Compatible with HWM Online web viewer.
Digital

2x Uni- or bi-directional pulse.

Analogue

Internal Pressure Transducer

External Pressure Transducer

Serial

RS232 interface for programming and interrogation with PC/Laptop or PDA/Tablet

Dimensions

2 x 315H x153W x 87H mm

Construction

Aluminium Alloy Casing

Weight

Approx 3.5kg (x2)

Operating temp

-20 to +70°C (-5 to +160°F)

Ingress protection



IP68 fully submersible

Power



Lithium-thionyl chloride cell operational for 5 years under typical operating conditions.
