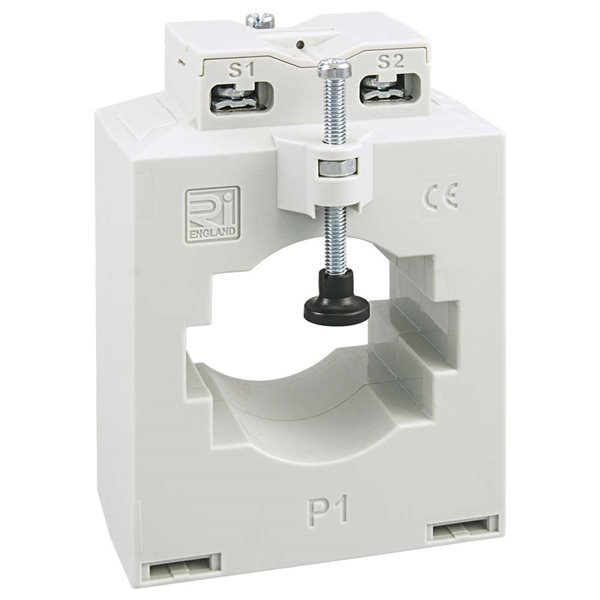

RI-CT080

current transformer
primary current: 250 .. 1250 A , output : /5A
opening: diameter 40 mm, 50x10 mm, 40 x 30 mm
width: 70 mm

More details...

Availability : 2-3 weeks

29,00 €

• From 250A to 1250A Primary currents

• 5A or 1A Secondary output

• 70 mm width

• opening: 40 mm, 50x10 mm, 40 x 30 mm

• Sealable terminal cover

• Supplied with DIN Rail mounting clip and mounting feet

• Compact design

• Indication of primary current flow (arrows on case body)



Product Description


The RI-CT080 Series forms part of a large family of solid
core single phase moulded case current transformers from
Rayleigh Instruments.
These transformers are suitable for monitoring current flow
in commercial, industrial or utility applications. They are
designed to connect any standard metering or relay product
requiring a 5A or 1A output and are available with Primary
current input ranges from 250A to 1250A
The RI-CT080 Series have been designed for ease of
installation and are supplied with DIN rail clip, Busbar fixings
and fixing feet. They also have clear markings moulded into
the case to indicate the correct direction of primary current
flow to minimise installation errors.

  • type current transformer
  • output ../5A

version : 250/5A 300/5A 400/5A 500/5A 600/5A 750/5A 800/5A 1000/5A 1200/5A 1250/5A

Combinations Stock Price quantity Add to cart
 250/5A 250/5A
RI-CT080-250/5A

2-3 weeks


29,00 €
 300/5A 300/5A
RI-CT080-300/5A

2-3 weeks


28,68 €
 400/5A 400/5A
RI-CT080-400/5A

2-3 weeks


31,12 €
 500/5A 500/5A
RI-CT080-500/5A

2-3 weeks


29,83 €
 600/5A 600/5A
RI-CT080-600/5A

2-3 weeks


31,30 €
 750/5A 750/5A
RI-CT080-750/5A

2-3 weeks


36,94 €
 800/5A 800/5A
RI-CT080-800/5A

2-3 weeks


38,90 €
 1000/5A 1000/5A
RI-CT080-1000/5A

2-3 weeks


43,46 €
 1200/5A 1200/5A
RI-CT080-1200/5A

2-3 weeks


43,78 €
 1250/5A 1250/5A
RI-CT080-1250/5A

2-3 weeks


44,60 €
