• From 150 to 2500A Primary currents
• 5A or 1A Secondary output
• 96 mm width
• opening: 34 x 84 mm
• Sealable terminal cover
• Supplied with DIN Rail mounting clip and mounting feet
• Compact design
• Indication of primary current flow (arrows on case body)
Product Description
The RI-CT130 Series forms part of a large family of solid
core single phase moulded case current transformers from
Rayleigh Instruments.
These transformers are suitable for monitoring current flow
in commercial, industrial or utility applications. They are
designed to connect any standard metering or relay product
requiring a 5A or 1A output and are available with Primary
current input ranges from 150A to 2500A

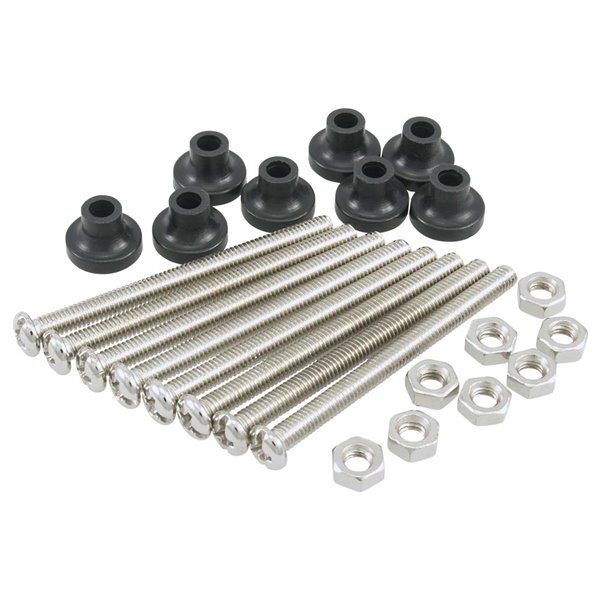

The RI-CT130 Series have been designed for ease of
installation and are supplied with Busbar fixings. They also
have clear markings moulded into the case to indicate the
correct direction of primary current flow to minimise
installation errors.
version : 150/5A 160/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 750/5A 800/5A 1000/5A 1200/5A 1250/5A 1500/5A 1600/5A 2000/5A 2500/5A
| Combinations | Stock | Price | quantity | Add to cart |
150/5A
RI-CT130-150/5A |
2-3 weeks |
34,89 € |
|
|
160/5A
RI-CT130-160/5A |
2-3 weeks |
34,89 € |
|
|
200/5A
RI-CT130-200/5A |
2-3 weeks |
35,44 € |
|
|
250/5A
RI-CT130-250/5A |
2-3 weeks |
35,44 € |
|
|
300/5A
RI-CT130-300/5A |
2-3 weeks |
35,72 € |
|
|
400/5A
RI-CT130-400/5A |
2-3 weeks |
36,54 € |
|
|
500/5A
RI-CT130-500/5A |
2-3 weeks |
37,64 € |
|
|
600/5A
RI-CT130-600/5A |
2-3 weeks |
38,49 € |
|
|
750/5A
RI-CT130-750/5A |
2-3 weeks |
39,86 € |
|
|
800/5A
RI-CT130-800/5A |
2-3 weeks |
40,42 € |
|
|
1000/5A
RI-CT130-1000/5A |
2-3 weeks |
42,41 € |
|
|
1200/5A
RI-CT130-1200/5A |
2-3 weeks |
45,07 € |
|
|
1250/5A
RI-CT130-1250/5A |
2-3 weeks |
45,57 € |
|
|
1500/5A
RI-CT130-1500/5A |
2-3 weeks |
47,94 € |
|
|
1600/5A
RI-CT130-1600/5A |
2-3 weeks |
48,89 € |
|
|
2000/5A
RI-CT130-2000/5A |
2-3 weeks |
53,16 € |
|
|
2500/5A
RI-CT130-2500/5A |
2-3 weeks |
61,80 € |
|
