serie Z-PC-Line
. werkingsfrequentie: 868-870 Mhz
. zowel transmitter als receiver
. afstand zender ontvanger: in open veld tot 7 km
. voedingsspanning: 8..36 Vdc
. communicatie: RS485
. antenne inbegrepen
. afmetingen: Ø40mm, l = 420 mm
| Order code : | Z-AIR-1 |

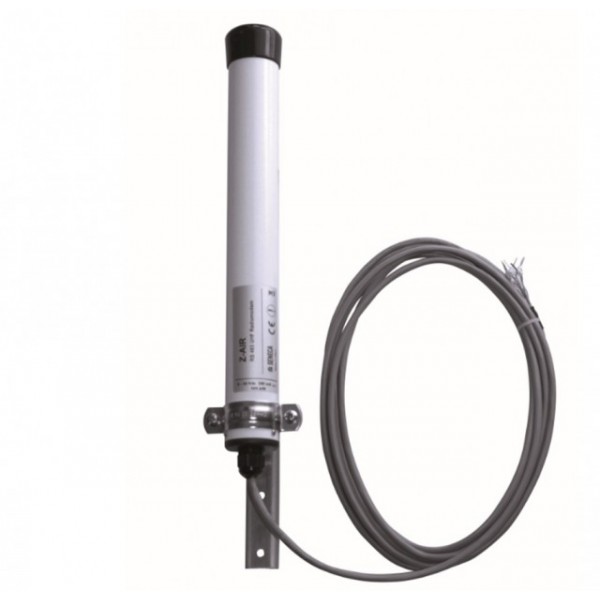

| Description: | Radiomodem with RS485 interface and integrated antenna |
| Power Supply: | 9 – 32 Vdc |
| Bandwidth: | 868 – 870 MHz |
| Range: | Up to 7 km in open field with directive antenna in dominant position |
| Data rate: | 9.600 bps (@ 25 kHz); 19.200 bps (@ 50 kHz) |
| Operating modes | Point-to-point, Point-to-multipoint, broadcasting, digirepetear; routing charts supported for forwarding |
| Communication via RS485 | RS485 serial port communication parameters are set by default in 9.600 (Baud Rate) 8N1. NOTE: If you need the product configuration in 8N2 mode, please explain it in the order notes. |
| Antenna: | λ/2 embedded |
| Modulation: | 9K00F1D (@ 25 kHz); 18K00F1D (@ 50 kHz) |
| Operating temperature: | -30..+60 °C |
| Dimension: | Ø 40 x L 420 mm |
| Degree of protection: | IP65 |
| Receiver: | CLASSE 2 - LBT e AGILITY |
| Interface: | RS485; data rate 1.200 - 57.600 bps; Communication mode Half /Full Duplex |
| Conformity: | CE |
kabel lengte : 10 meter 5 meter
| Uitvoeringen | Stock | Prijs | aantal | toevoegen |
10 meter
Z-AIR-1-10 |
1-2 weken |
0,00 € |
|
|
5 meter
Z-AIR-1 |
1-2 weken |
664,62 € |
|
