Driefasige netanalysers ENERGY PLUS versie met RS485 en LAN TCP/IP Modbus; Datalogging, harmonische analyse
beschikbaarheid: 1-2 weken
Driefasige netanalysers ENERGY PLUS versie met RS485 en LAN TCP/IP Modbus; Datalogging, harmonische analyse
beschikbaarheid: 1-2 weken
| product | vanaf (aantal) | korting |
|---|---|---|
| S604E | 5 | -5% |
| S604E | 25 | -20% |

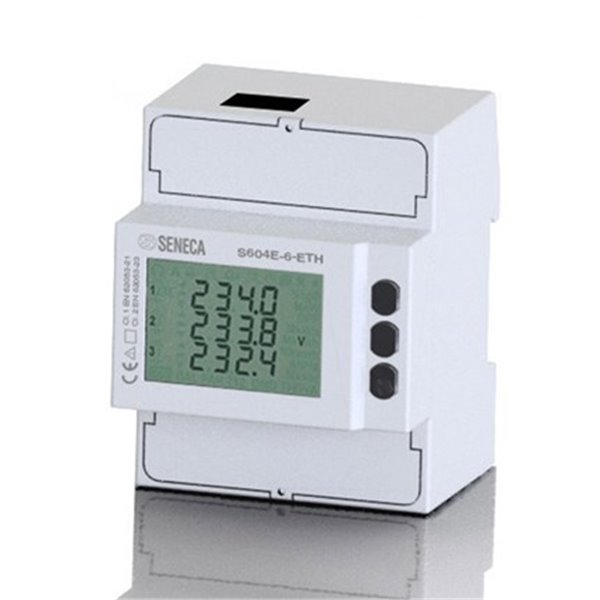

S604E is an innovative instrument for measurement and recording of the electrical parameters. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. S604E is suitable to establish the measurement points on the plant. On request, the instrument can communicate through the RS485 serial port by ModBUS RTU/ASCII protocol or through LAN port by ModBUS TCP-IP protocol.
| Power Supply | 85..265 Vac (auxiliary powered models) |
| Display | Backlighted LCD 43x29 mm |
| Harmonics | Yes (up to 15th) |
| Recordings | MIN/AVG/MAX values for all powers |
| Memory for data logs | 8 MB |
| Accuracy class | 0,2% (voltage), 0,4% (current), 0,5% (power) |
| Connections | 1/5A (external CTs), 80A (direct), Rogowski Coils |
| Interfaces | RS485, LAN |
| Dimension | 72x90x65 mm |
communicatie : ethernet interface RS485 Modbus stroomingang : via CT 1A/5A 80 A rechtstreeks
| Uitvoeringen | Stock | Prijs | aantal | toevoegen |
ethernet interface
via CT 1A/5A
S604E-6-ETH |
1-2 weken |
640,59 € |
|
|
RS485 Modbus
via CT 1A/5A
S604E-6-MOD |
1-2 weken |
405,14 € |
|
|
|
ethernet interface
80 A rechtstreeks
S604E-80-ETH |
1-2 weken |
733,99 € |
|
