product | vanaf (aantal) | korting |
---|---|---|
Z-SG | 5 | -5% |
Z-SG | 25 | -20% |

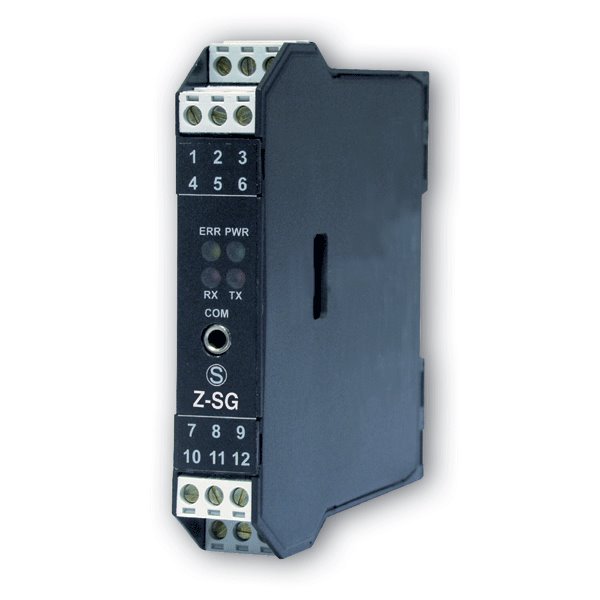

serie Z-Line

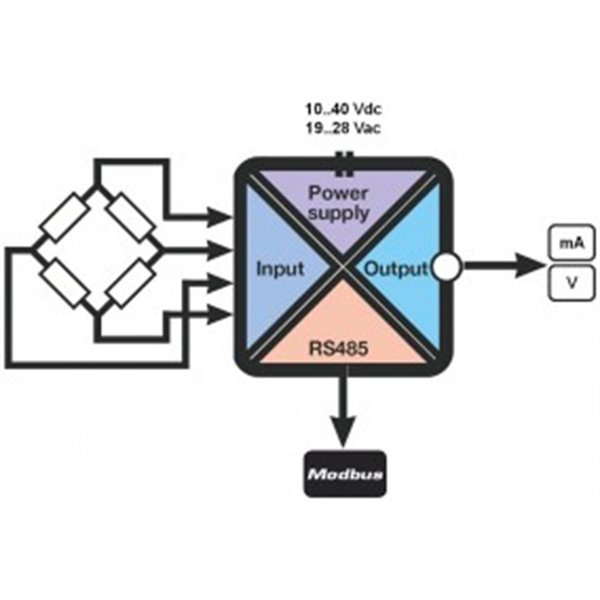

. ingang: 1 x analoog: load cel (strain gauge) 1..4/8 cellen
1 x digitaal: tarra calibratie
. uitgang: 1 x analoog: spanning: 0..10 / 0..5 Vdc
stroom: 0..20 / 4..20 mA
1 x digitaal: gewicht limiet
. interface: RS485 seriële communicatie met Modbus-RTU protocol
(het model is ook beschikbaar zonder communicatie)
. voedingsspanning: 10 tot 40 Vdc en 19..28 Vac
. galvanische scheiding: 1.5 kV
. nauwkeurigheid: 0.1 %
