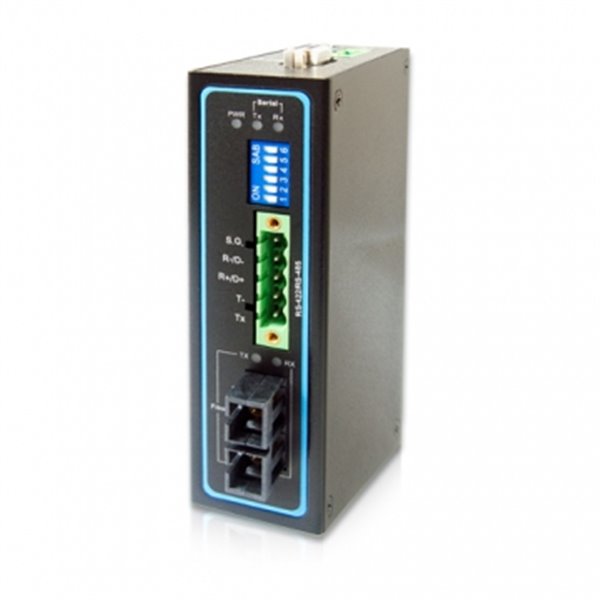

Industrial Serial-to-Fiber Media Converter, single- mode, ST connector, 30 KM
beschikbaarheid: 3 weken
SF63-TB-DB-1Fs-ST-30
beschikbaarheid: 3 weken
SF63-TB-DB-1Fs-ST-30
| Optical Fiber | |
| Connector | SC |
| Port(s) | 1 |
| Transmission Rate | 1000 Mbps |
| Fiber Type | Single mode (SF63-TB-DB-1Fs-SC-30) Multi mode (SF63-TB-DB-1Fm-SC-2) |
| Cable Requirements | 9/125μm (SF63-TB-DB-1Fs-SC-30) 50/125μm, 62.5/125μm (SF63-TB-DB-1Fm-SC-2) |
| Fiber Wavelength | 1310nm |
| Tx Output Power | 0 ~ -20 dBm (SF63-TB-DB-1Fs-SC-30) -14~-23.5 dBm @ 50/125μm (SF63-TB-DB-1Fm-SC-2) -14~-20 dBm @ 62.5/125μm (SF63-TB-DB-1Fm-SC-2) |
| Rx Sensitivity | -32 dBm (SF63-TB-DB-1Fs-SC-30) -31 dBm (SF63-TB-DB-1Fm-SC-2) |
| Fiber Distance | 30km (SF63-TB-DB-1Fs-SC-30) 2km (SF63-TB-DB-1Fs-SC-2) |
| Serial | |
| Connector | DB9 x 1 / 5.08mm 5-pin Lockable Terminal Block x 1 |
| Mode | RS-232 on DB9 RS-422/RS-485 on Terminal Block |
| Isolation | No |
| Port(s) | 2 |
| Baud rate | 300bps ~ 921kbps |
| Power | |
| Connector | 5.08mm 3-pin Lockable Terminal Block |
| Input Voltage | 9-48 VDC |
| Input Current | 0.28A |
| Power Consumption | 2.52W max. |
| Reverse Polarity Protection | Yes |
| Redundancy | No |
| Approval | |
| EMC | FCC Class A, CE Class A |
| EMS | ESD Level 4, RS Level 3, EFT Level 3, Surge Level 3, CS Level 3, PFMF Level 3, DIP. |
| Safety | EN 60950-1 |
| Shock | MIL-STD-810F Method 516.5 |
| Freefall | MIL-STD-810F Method 516.5 |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| Protection | IP30 |
| Environment | |
| Operating | -40°C~70°C (32°~158°F) |
| Storage | -40°~85°C (-40°~185°F) |
| Humidity | 5~95%RH(Non-condensing) |
| Mechanical | |
| (W x H x D) | 34.4mm x 91.2mm x 120mm |
| Material | Metal |
| Installation | DIN Rail, Wall mount (optional) |
| Reset Button | No |
| Weight | 700g |
| Warranty | 5 years |
Ordering code:
| Model Name | P/N | Description |
| SF63-TB-DB-1Fs-SC | 1P1SF63FSSC001G | Industrial RS-232/422/485 to Single-mode fiber converter, SC connector |
| SF63-TB-DB-1Fs-ST | 1P1SF63FSST001G | Industrial RS-232/422/485 to Single-mode fiber converter, ST connector |
| SF63-TB-DB-1Fm-SC | 1P1SF63FMSC001G | Industrial RS-232/422/485 to Multi-mode fiber converter, SC connector |
| SF63-TB-DB-1Fm-ST | 1P1SF63FMST001G | Industrial RS-232/422/485 to Multi-mode fiber converter, ST connector |
Accessories:
| US315-1212(US-Y) | Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6 |
| UNE315-1212 (EU-Y) | Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6 |
| AD1024-24F |
24W/1A DIN-Rail 24 VDC power supply with
universal 100~240 VAC/120~370 VDC input
|
| AD1048-24FS |
48W/2A DIN-Rail 24 VDC power supply with
universal 100~240 VAC/120-370 VDC input
|
| AD1072-24F |
72W/3A DIN-Rail 24 VDC power supply with
universal 100~240 VAC/120-370 VDC input
|
| AD1100-24F |
100W/4A DIN-Rail 24 VDC power supply with
universal 100~240 VAC/120-370 VDC input
|
| AD1120-24F |
120W/5A DIN-Rail 24 VDC power supply with
universal 100~240 VAC/120-370 VDC input
|
| AD1120-48F |
120W/2.5A DIN-Rail 48 VDC power supply with
universal 100~240 VAC/120-370 VDC input
|
| 2ESDP-03P | 3-pin 5.08mm Terminal Block with 180˚ Angle |
| LM38-A3S-TI-N | SFP Transceiver, 155Mbps, 1310nmLED, Multi-mode, 2km, 3.3V, -40~85C |
| LM38-A3S-TI-N | SFP Transceiver, 155Mbps, 1310nmFP, Single-mode, 30km, 3.3V,-40~85C |
