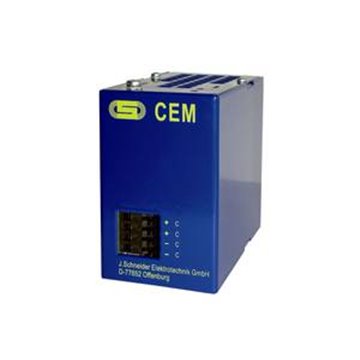

capacitor module d'extension, 12 Vdc, 1 kJ, 3A, dimensions: 92.5 x 60 x 116 mm, poids 0.52 kg
Disponibilité : 1-2 semaines
CEM 12-1
capacitor module d'extension, 12 Vdc, 1 kJ, 3A, dimensions: 92.5 x 60 x 116 mm, poids 0.52 kg
Disponibilité : 1-2 semaines
CEM 12-1
capacitor module d'extension, 12 Vdc, 1 kJ, 3A, dimensions: 92.5 x 60 x 116 mm, poids 0.52 kg
Short DescriptionThe CEM module is used to increase the buffer energy for the devices C-TEC 1203 and AC C-TEC 1203-05.
|
|---|
| Nominal input voltage |
12 V DC |
| Input voltage range |
0... 13,2 V DC 0... 12 V DC +10% |
| Buffer capacity |
1 kJ |
| Nominal input current |
3 A DC |
| Nominal output current |
3 A DC |
| Fusing input |
3 A T (PTC internal) |
| Fusing DC output circuit |
3 A T (PTC internal) |
| Type of connection input ,C+/C-' |
Spring terminal max. 1,0mm² |
| Type of connection output ,C+/C-' |
Spring terminal max. 1,0mm² |
| Protective system |
IP 20 and EN 60529 |
| Storage temperature |
- 40... 60 °C |
| Environmental temperature |
- 40... 60 °C |
| Relative humidity | 95 % non-condensing |
| Max. mounting height (without load reduction) | 2000 m above sealevel |
| Dimensions (H x W x D) |
92,5 mm x 60 mm x 116 mm |
| Weight |
0,52 kg |
| Fixation |
Snap-on mounting for DIN top hat rail |
| Norms and Regulations |
EN 50178 / EN 60950 |
| UL approvals |
No |
