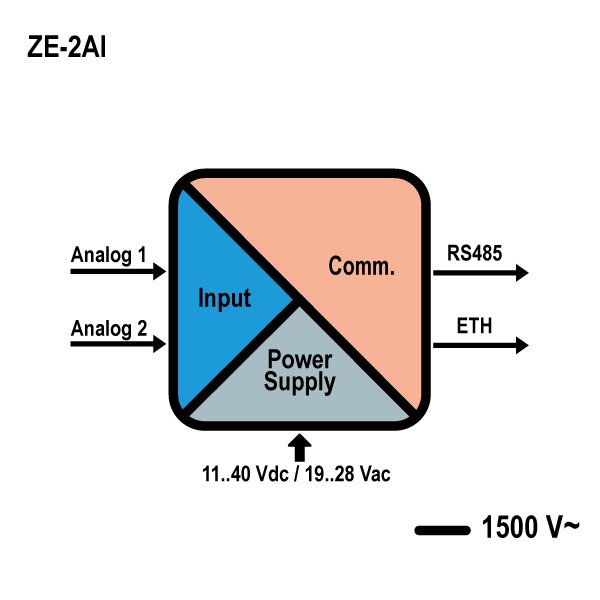

ZE-2AI is een I / O-module met 2 analoge ingangen, slave voor Modbus TCP-IP-communicatie (Ethernet) en Modbus RTU. ZE-2AI biedt de mogelijkheid om de parameters in te stellen via internet (webserver) of usb (Easy setup-software). Analoge ingangen kunnen worden ingesteld op spannings- of stroomschalen.
| Description: | 2 CH Analogue input Modbus RTU - Modbus TCP-IP module |
| Power Supply: | 19.. 28 Vac (50..60 Hz), 11.. 40Vdc |
| Isolation: | 1.500 Vac |
| Analog Input: | 2-CH 0-20 mA / 0-30 V; 16 bit ADC resolution |
| Accuracy: | 0,1% |
| Interfaces: | N°1 Ethernet 10/100 Mbps port, N°2 RS485 ports, N°1 mini USB 2.0 port |
| Protocols: | ModBUS RTU, ModBUS TCP-IP, http |
| Settings: | Software (EASY SETUP), DIP switch (address, baud rate), web server (remote I/O configuration) |
| Operating Temperature: | -10 °C.. +65 °C |
| Dimension: | 17.5 x 100 x 112 mm |
