ZE-2AI-P est un module d'E/S avec 2 entrées analogiques et 1 port Ethernet, et prend en charge la communication PROFINET IO. Le module a une isolation entre les entrées et les circuits basse tension de 1 500 Vac. La configuration peut être effectuée via le logiciel CODESYS softPLC et l'environnement de conception TiA Portal/Simatic Step7.
| POWER SUPPLY | 10..40 Vdc / 19..28 Vac |
| POWER ABSORPTION | 1,5W @ 24Vdc, Max: 2W |
| ISOLATION | 1,5 kVac |
| PROTECTION DEGREE | IP20 |
| STATUS LED INDICATORS | Power supply / IP address Rx/Tx Profinet Tx Ethernet Link Ethernet Inputs/outputs status Fail |
| OPERATING TEMPERATURE | -25..+70°C |
| STORAGE TEMPERATURE | -30..+85°C |
| HUMIDITY | 30..90% non-condensing |
| DIMENSION | 17,5x102,5x111 mm |
| WEIGHT | about 110 g |
| HOUSING | PA6, black color |

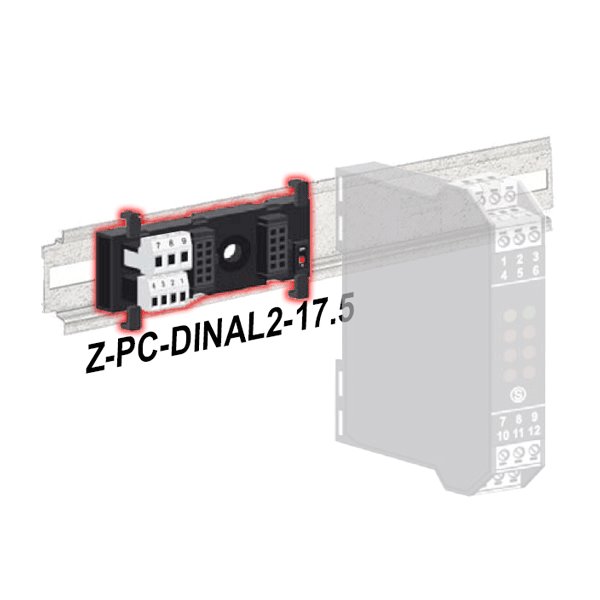

| CONNECTIONS | Removable screw terminals for conductors up to 2.5 mm2 IDC10 rear connector for DIN rail 46277 RJ45 |
| MOUNTING | 35 mm DIN rail guide 46277 |
| CONFIGURATION | DIP Switch (default configuration) CODESYS softPLC software TiA Portal/Simatic Step7 Web Server |
| INTERFACE | Nr. 1 Ethernet 10/100 Mbps |
| SPEED | Up to 115.200 bps / 100 Mbps (TCP-IP) |
| SUPPORTED PROTOCOLS | Profinet IO |
| ANALOG INPUTS | Nr. 2 analog inputs |
| TYPE OF ANALOG INPUTS | 0..20 mA / 0..30 V max resolution 16 bit protection 40V / 25mA |
| STANDARD | CE |
