| Product | From (qty) | Discount |
|---|---|---|
| V4IA100A 24-240V AC/DC | 5 | -5% |
| V4IA100A 24-240V AC/DC | 25 | -20% |

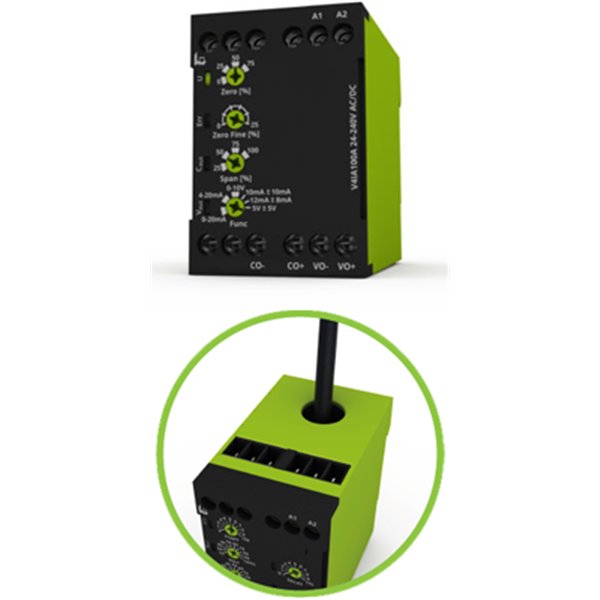

AC/DC active current measuring
Multifunction transducer
Measuring range 0 ... 100 A AC/DC
Supply voltage: 24 ... 240 V DC
48 ... 240 V AC
Built-in current transformer (15 mm)
Analog output
(4-20 mA, 0-20 mA, 0-10 V)
Ratiometric analog output selectable:
(10 mA ±10 mA, 12 mA ±8 mA, 5 V ±5 V)
Measuring range 0 ... 100 A DC
Width 45 mm
SUPPLY CIRCUIT
Terminals A1-A2
Supply voltage AC 48 ... 240 V
DC 24 ... 240 V
Supply voltage tolerance AC -10 / +10 %
DC -15 / +20 %
Rated frequency 16,6 ... 400 Hz or DC
Rated frequency including tolerance 16,0 ... 420 Hz
Rated consumption 230 V AC @ 50 Hz typ. 0,65 W / 1,2 VA
24 V DC typ. 0,55 W
Duty-cycle 100 %
Backup power time < 6 ms
Recovery time ≥ 400 ms @ 24 V DC
MEASURING CIRCUIT
Terminals Built-in current transformer
Measurand current 1-phase
Measuring method True RMS
Measuring range 100 A AC/DC
Frequency sinus 16,6 ... 400 Hz
non-sinusoidal
signals 50 / 60 Hz (arbitrary waveform)
