Surprise Smart Display

7" touchscreen HMI with integrated I/O gateway, datalogger, remote control functions

More details...

Availability : 1-2 weeks

220,27 €

SURPRISE Smart Display (SSD) is a latest-generation 7" IIoT HMI with a powerful ARM microprocessor, dual Ethernet ports, I/O channels, Wi-Fi module and two serial ports. A multi-purpose device that includes different features such as gateway, datalogger, alarm management, Wi-Fi router, logics, VPN technology and remote assistance / remote control functions also via Cloud services.
SSD does not require any development environment, programming is done via webserver. Through the graphical interface, you can set the communication, display the parameters, manage alarms, send commands and customize the graphic appearance of the widgets/pages for the slideshow.

SURPRISE Smart Display generates client/server HMI solutions for the realization of variable complexity systems with different simultaneous access points to the plant, or to the single machine, also integrating data analysis, supervision and management systems, ERP and MES, through IIoT protocols such as MQTT and OPC-UA.
SSD is suitable for digital and interconnected Industry 4.0 solutions in order to maximize the productivity and efficiency of your industrial plants.



TECHNICAL DATA

Power supply 24 Vdc/ac +/- 10%
Power consumption  Max 10 W, 16 VA
Insulation No
Display 7" LCD TFT, anti-scratch glass
Resolution 800 x 480 pixel, 16M colours, capacitive
Display features Display standard widget-based, Display remoto (su PC e device con qualunque O.S.), Display on Display (Emulazione display dipositvi ModBUS ciechi)
Protection degree IP64

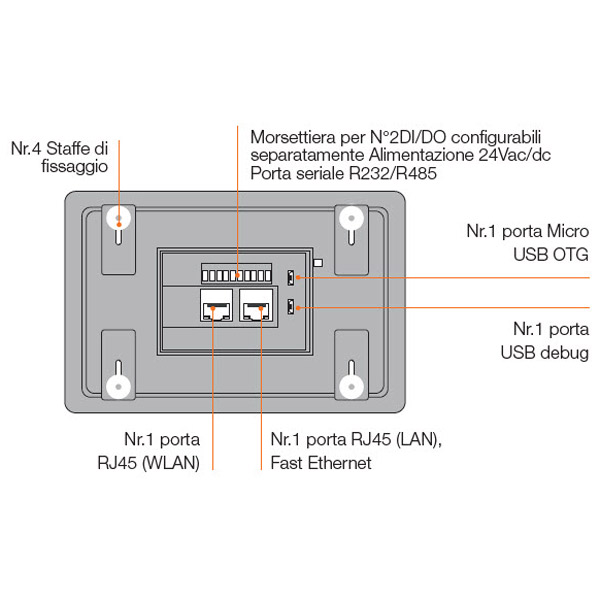

Ethernet ports Nr. 2 Fast Ethernet 10/100Tx ports
Serial ports Nr. 1 RS232/RS485 commutable serial port, baud rate max 115k
Nr. 1 RS485 serial port, baud rate max 115kbps
USB ports Nr. 1 micro USB host port
Nr. 1 micro USB serial port for debug
WiFi ports Wi-Fi 802.11 b/g/n 2.4 GHz
Protocols Modbus TCP server, Modbus RTU master, Modbus RTU slave, FTP server, SFTP server, HTTP server, HTTPS server, OpenVPN, SSL, MQTT, OPC UA, HTTP post
N° Max Client TCP-IP (Server Mode) 32
N° Max Server TCP-IP (Client Mode) -
N° Max Client variables / TAG 2.000
N° Max Nodi Slave Modbus RTU/ASCII 128
N° Max Client VPN Point-To-Point: 1; Single LAN: 496
Operating temperature -20°C..+60°C
Dimension (LxHxD) 192x132x32 mm
Cutout dimension 157x102 mm
Weight 420 g circa
Housing ABS, colour black
Installation Panel mount
OPERATING MODES
Modbus Gateway Ethernet - Serial Modbus TCP-IP -> Modbus RTU
Modbus Gateway shared memory Modbus TCP-IP -> Modbus RTU (Slave)
Modbus TCP-IP -> Modbus TCP-IP (Master)
Modbus TCP-IP -> Modbus RTU Master / Slave
Transparent Gateway Serial Device Server / Virtual COM port
Serial Tunnelling Serial Tunnelling P2P on TCP/UDP, Serial Tunnelling P2MP on UDP
IoT / Cloud-based gateway  Yes
Datalogger Yes
Serial Sniffer Yes
Router / Access Point Wi-Fi Yes
Redundant unit Yes
Alarm management unit via SMS, email, Cloud, MQTT, HTTP post Yes
Open VPN support Yes
LET'S VPN support. Point-To-Point or Single LAN operating modes Yes
Microcontroller Yes, if-then-else logic, 2.000 instructions
LAN / WAN switch Yes
NAT 1:1 - LAN / WAN access Yes
APN identifier Yes
DI/DO channels 2
Security protocols SSL
NORMS
Certification CE
Norms EN 300328, EN 301489-17, EN 301489-1, EN 60368-1, EN 62311

upgrade : VPN IIoT/MQTT/Cloud logic & VPN logic & IIoT/MQTT/Cloud VPN & IIoT/MQTT/Cloud VPN & logic & IIoT/MQTT/Cloud

Combinations Stock Price quantity Add to cart

SSD-UPG-L

1-2 weeks


220,27 €
 VPN VPN
SSD-UPG-V

1-2 weeks


157,06 €
 IIoT/MQTT/Cloud IIoT/MQTT/Cloud
SSD-UPG-I

1-2 weeks


157,06 €
 logic & VPN logic & VPN
SSD-UPG-L-V

1-2 weeks


281,56 €
 logic & IIoT/MQTT/Cloud logic & IIoT/MQTT/Cloud
SSD-UPG-L-I

1-2 weeks


281,56 €
 VPN & IIoT/MQTT/Cloud VPN & IIoT/MQTT/Cloud
SSD-UPG-V-I

1-2 weeks


220,27 €
 VPN & logic & IIoT/MQTT/Cloud VPN & logic & IIoT/MQTT/Cloud
SSD-UPG-L-V-I

1-2 weeks


344,77 €
