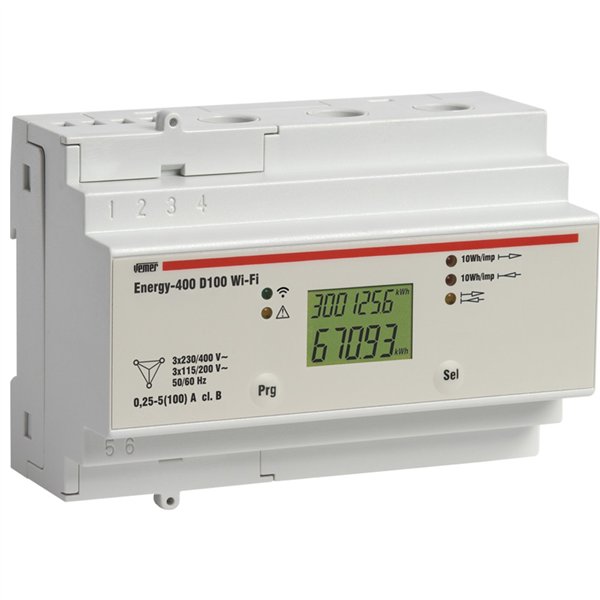

VE799300

DIN-rail (7-module) Wi-Fi energy meter for measuring both withdrawn and fed energy in three-phase systems, with 230 Vac / 400 Vac power supply and direct current insertion up to 100A. The device has a 7-digit backlit display for non-resettable total energy, plus 5 digits for resettable partial energy, manageable via app.

What is a three-phase energy meter and what it is used for
A three-phase energy meter is a device designed to measure and record electricity consumption in a three-phase system. A three-phase system is a type of electrical system that supplies electricity through three phases and a neutral. This type of system is commonly used in industrial, commercial, and other applications where more electricity is required than a single-phase system. The current feed-in must be carried out through an amperometric transformer, and the secondaries cannot be grounded.

Device use
The device features:

• a backlit display for viewing consumption figures
• a “SEL” button on the front for page selection and backlight configuration
• a “PRG” button on the front for Wi-Fi configuration
• two LEDs on the front for displaying the connection status to the Wi-Fi network
• three LEDs on the front for displaying the status of the product
• Bluetooth interface for device configuration
• Wi-Fi module for remote control via app

Remote control
Thanks to its built-in Wi-Fi module, Energy-400 D100 Wi-Fi can be managed via the dedicated "Energy Wi-Fi" app, available for smartphones, tablets and desktop, both iOS and Android, which allows you to:

• display the total and partial count of both energy produced and energy consumed
• reset the partial energy count to zero
• display instantaneous values of voltage, current and power (both system and for each individual phase)
• view hourly / daily / monthly consumption trends via an interactive graph, which allows you to scroll through the hours / days / months, simply by clicking on the right / left arrow, or by scrolling directly through the graph
• view and download the energy consumption history of the last 18 months
• enable push notifications to alert when the consumption and power value, preset by the user as the maximum threshold, is reached

Energy savings
Being able to consistently monitor and manage the data inherent in consumption allows you to realize how much energy you are using. With Energy-400 D100 Wi-Fi, you can optimize resource use and reduce waste. This innovative technology allows you to take advantage of modern convenience while making environmentally conscious decisions. By seamlessly integrating monitoring and data management, Energy-400 D100 Wi-Fi facilitates sustainable practices and control of them.
