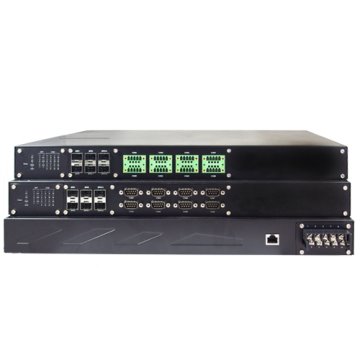

Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC
Availability : 2-3 weeks
PG5908A
Availability : 2-3 weeks
PG5908A
| Hardware Specifications | |
| Network Interface | |
| Ethernet Port | 6 x RJ-45 or 6 x SFP slot |
| LAN Mode | Dual Subnets or LAN Redundancy |
| Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
| Serial Interface | |
| Connector | 5-Pin 5.08mm Terminal Block or D-Sub9 connector |
| Mode | RS-232/422/485, software selectable |
| Port(s) | 8 |
| Baud rate | 50~921,600 bps |
| Parity | None, Odd, Even, Mark, Space |
| Data bits | 5,6,7,8 |
| Stop Bit | 1,2 |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Power Characteristic | |
| Connector | 10-Pin Terminal Block |
| Input Voltage | 24-48 VDC 100-240 VAC / 100-370 VDC for HV Series |
| Power Consumption | 0.73A @ 24 VDC 0.35A @ 100 VAC 0.2A @ 100 VDC |
| Reverse Polarity Protection | Yes (Two Modules) |
| Power Redundancy | Yes |
| Approval | |
| EMC | FCC Part 15, Subpart B, Class A EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55024 |
| Safety | EN 60950-1 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| Vibration | IEC 60068-2-64 |
| RoHS | Yes |
| MTBF | TBD |
| Environment | |
| Operating | -40°C ~ 85°C (-40°F ~ 185°F) |
| Storage | -40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity | 5~95%RH(Non-condensing) |
| Mechanical | |
| Housing | IP30 protection, metal housing |
| Dimensions (W x H x D) | 440.6mm x 44mm x 309mm |
| Installation | 19” Rack Mount |
| Reset Button | Yes |
| Weight | 4Kg |
| Software | |
| Supported Protocol | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SNMP v1/v2c/v3, Syslog, IPsec VPN peer-to-peer and peer-to-side, with a maximum VPN throughput of 37.9Mbps(testing conditions may affect the VPN throughput) |
| Approval | |
| EMC | FCC Part 15, Subpart B, Class B EN 55022, Class B EN 61000-6-2, Class B EN 61000-3-2 EN 61000-3-3 EN 55024 EN 61000-6-4 IEC 61850-3 / IEEE 1613 |
| Safety | EN 61010-2-201 |
| Shock | MIL-STD-810F Method 516.5 |
| Drop | MIL-STD-810F Method 516.5 |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| RoHS | Yes |
| MTBF | TBD |
| Warranty | 5 years |
Ordering code:
| Model Name | Description |
| PG5908A-6SFP | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 24-48 VDC |
| PG5908-6SFP-TB | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 24-48 VDC |
| PG5908A-6SFP-Sis | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, Isolation, 24-48 VDC |
| PG5908A-6SFP-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP, DB9, 100-240VAC/100-370VDC |
| PG5908A-6SFP-TB-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 100-240VAC/100-370VDC |
| PG5908A-6SFP-Sis-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP, Isolated, 100-240VAC/100-370VDC |
| PG5908A | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC |
| PG5908A-TB | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 24-48 VDC |
| PG5908A-Sis | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 24-48 VDC |
| PG5908A-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 100-240VAC/ 100-370VDC |
| PG5908A-TB-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 100-240VAC/ 100-370VDC |
| PG5908A-Sis-HV | Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolated,100-240VAC/100-370VDC |
| Protocols | Description |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master/span> |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
