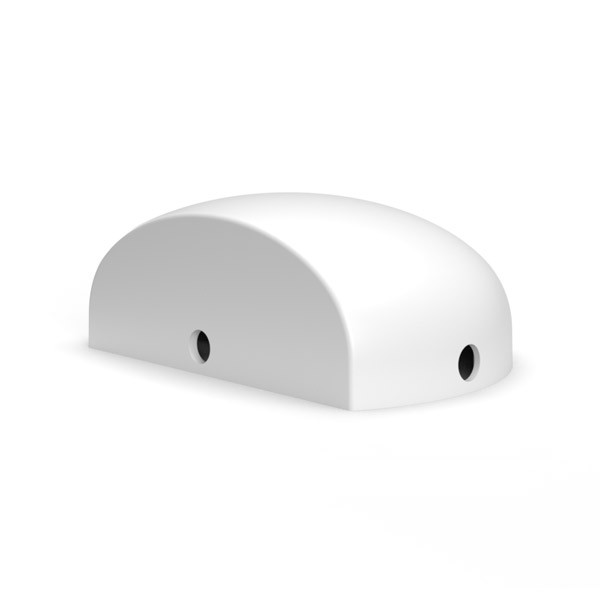

automation sensor with digital / analog inputs and anti-flooding
Availability : 1-2 weeks
R-GWR-S-1
automation sensor with digital / analog inputs and anti-flooding
Availability : 1-2 weeks
R-GWR-S-1
| Product | From (qty) | Discount |
|---|---|---|
| R-GWR-S-1 | 5 | -5% |
| R-GWR-S-1 | 25 | -20% |
This device is compatible with R-GWR gateway. This sensor allows to communicate temperature, humidity, voltage values up to 30 V; alternatively, it can be used as digital contact/input.
| Power supply | 3 V |
| Battery type and lifetime | Lithium, 900 mAh, max. indicative duration 1 year |
| Protection degree | IP20 |
| Status LED | Sending / Receiving Data from / to R-GWR |
| Operating temperature | -25..+70°C |
| Storage temperature | -40..+85°C |
| Humidity | 10% to 90% non-condensing |
| Dimension (WxHxD) | 65 x 45 x 30 mm |
| Weight | 45 g |
| Container | PC / ABS material self-extinguishing UL94-V0 |
| Connections | Screw terminals, removable 2-way screw, 3.5 mm pitch Flood-proof probe connector |
| Mounting | Wall mounting by means of screws or double-sided adhesive tape |
| Programming | Web Server Button for pairing |
| Regulations | ETSI EN 301 489-1 v.2.2.3, ETSi EN 301 409-3 v.2.1.1, EN 60950, ETSI 300 220-2 v3.2.1 |
| RADIO COMMUNICATION | |
| Technology | LoRa |
| Frequency Band | 863..865 MHz |
| Nominal Frequency | 863.11 MHz |
| Bandwidth | 25 kHz |
| Sensitivity | Up to -146 dBm |
| Max RF Power | +14 dBm |
| Max No. of coupled sensors | 32 |
| INPUT CHANNELS | |
| Integrated Temperature/Humidity Sensor | Temperature detection: -25..70 °C, Accuracy: 0,5 °C between 5..60 °C Humidity detection: 0..100%, Accuracy: 3% between 20 ÷ 80% R.H. |
| Analog/digital inputs | It is possible to set the input channel with one of the following options: - Nr.1 Analog input 0..30V (accuracy ±0.15 V) or Nr.1 Digital Input/counter - Nr.1 Digital input Reed relay for the control of the opening of compartments or doors as an alternative to the described input channels - Nr.1 Digital input for anti-flooding probe contact (see accessory) |
| Counter | @16bit, max frequency 1Hz |
| Anti-tamper function | Yes |
