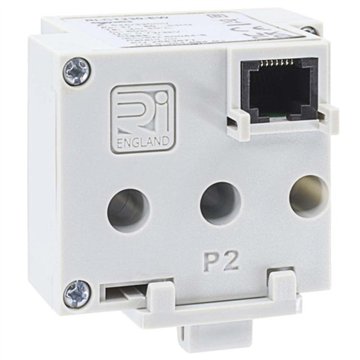

The RI-CT230-EW is a three-phase current transformer within the easywire® range and is available in six different frame sizes.

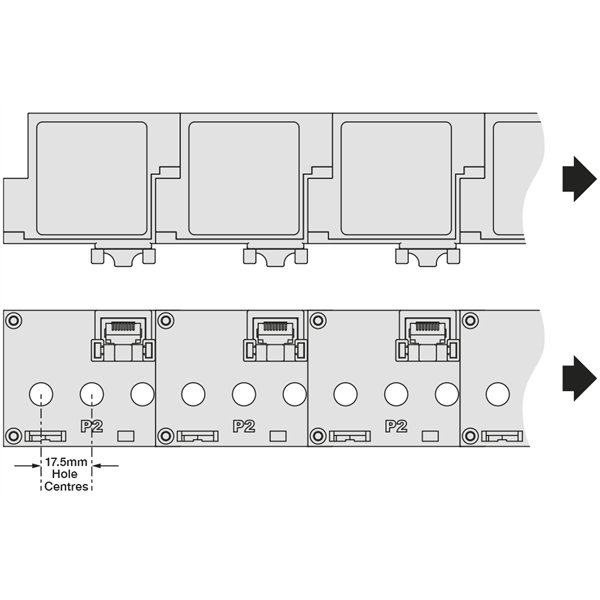

It is designed for direct mounting beneath MCBs with a 17.5 mm spacing between aperture centres. The easywire® system can reduce installation time by up to 90% compared to traditional current transformer and meter installations.

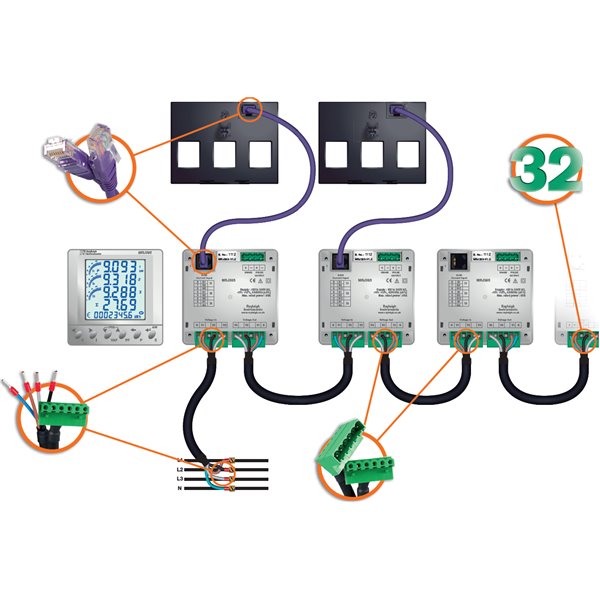

This transformer is suitable for industrial and commercial applications and is specifically designed for connection to easywire® metering products.
Integrated limiting circuitry ensures the secondary is always under load and clamped to a safe level. This allows the output to be safely disconnected while the primary remains energised.

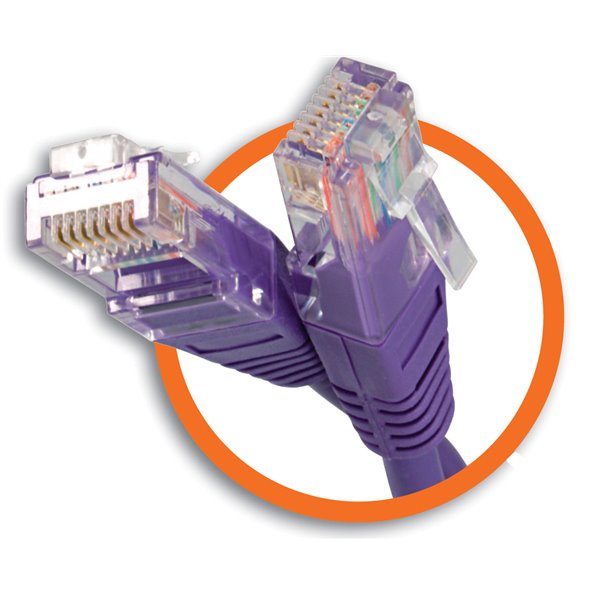

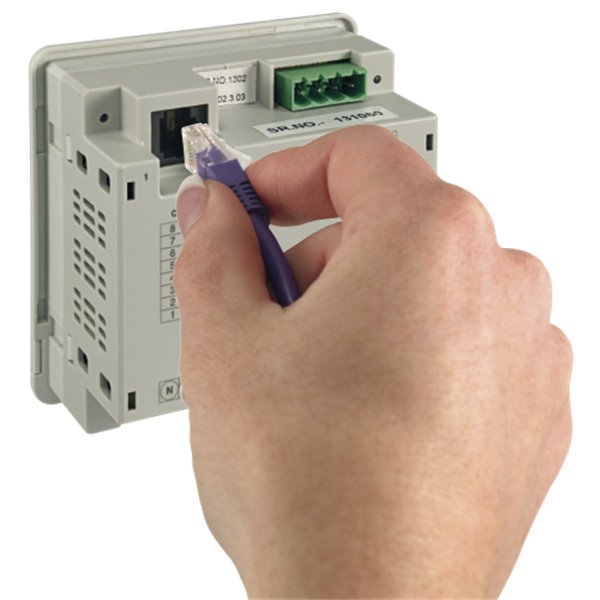

Enhanced design features include a robust snap-on DIN rail fixing, sealable (anti-tamper) RJ45 sockets and moulded load direction arrows on the CT housing.

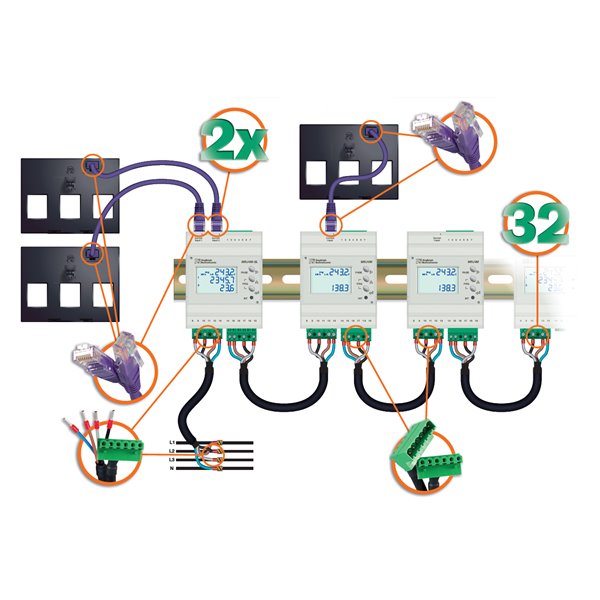

The housing design allows multiple current transformers to be mechanically interlinked, enabling monitoring of multiple three-phase circuits.
output : EasyWire current : 0..125 A 0..100 A 0..160 A 0..150 A 0..60 A
| Combinations | Stock | Price | quantity | Add to cart |
EasyWire
0..125 A
RI-CT240-EW 125A/330mV |
2-3 weeks |
57,90 € |
|
|
|
EasyWire
0..100 A
RI-CT240-EW 100A/330mV |
stock |
57,90 € |
|
|
|
EasyWire
0..160 A
RI-CT240-EW 160A/330mV |
2-3 weeks |
57,90 € |
|
|
|
EasyWire
0..150 A
RI-CT240-EW 150A/330mV |
2-3 weeks |
57,90 € |
|
|
|
EasyWire
0..60 A
RI-CT240-EW 60A/330mV |
2-3 weeks |
57,90 € |
|
