mbNET.rokey with LAN and WAN

https://www.inelmatec.be/6536-thickbox/mbnet-met-lan-en-wan-mbnet-met-lan-en-wan-eenvoudige-dial-up-router-4x-lan-interface-1x-wan-interface-dyndns-dhcp-internet-callb.jpg

Key switch, 4x LAN interface, 1x WAN interface, DynDNS, DHCP, Internet callback, firewall, OpenVPN, 4 digital inputs, 2 digital outputs, modem: without or 4G LTE

More details...

‹ ›

Display all pictures

Availability : stock

More info
Data sheet

Key switch
Digital inputs - to trigger the Internet dial-up router or to send an alarm by e-mail, SMS
Over 90 drivers for various types of control
Firewall with IP filtering, Simple-NAT, 1:1 NAT and Port Forwarding
Internet connection via a network interface or the WAN interface or UMTS or LTE modem
Secure connection via OpenVPN
Firewall, DynDNS, DHCP, web callback, OpenVPN
Two SIM card slots for GSM / UMTS and LTE devices
4x LAN-interface, 1x WAN-interface
4 digital inputs, 2 digital outputs (Galvanically isolated to the power supply)
Compact metal housing with IP20 for DIN rail mounting
USB connection for configuration and for USBoverIP
SD card slot
Dual LEDs in the function and status display

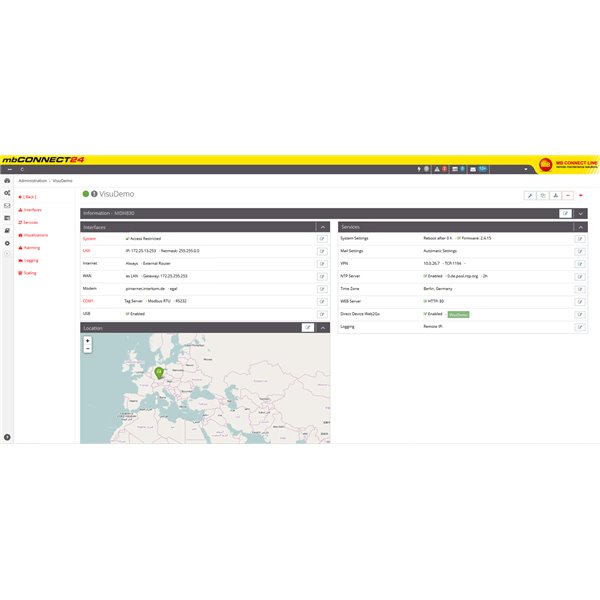

Integrated web server for easy configuration via HTTPS with individual password
A dial-up router

The device includes four LAN interfaces, one WAN interface and also a USB-connection for configuring.

software Toolbox|LUA|I/O manager|DHCP-DNS-Server
modem 2G|4G|analog|PPPoE|3G|Wifi|external Router / WAN
VPN functionality OpenVPN (free)|VPN-IPsec/VPN-PPTP/VPN-L2PT|OpenVPNs (Client/Server)
ports WAN|ethernet

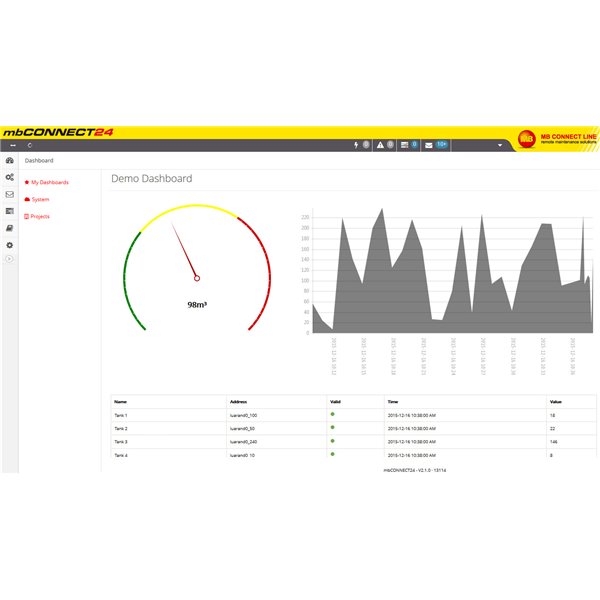

application WEB visualisation|Datalogging|M2M communication|Remote Maintenance
