MID B+D approved 96 x 96 mm netanalyser suitable for single- or threephase network

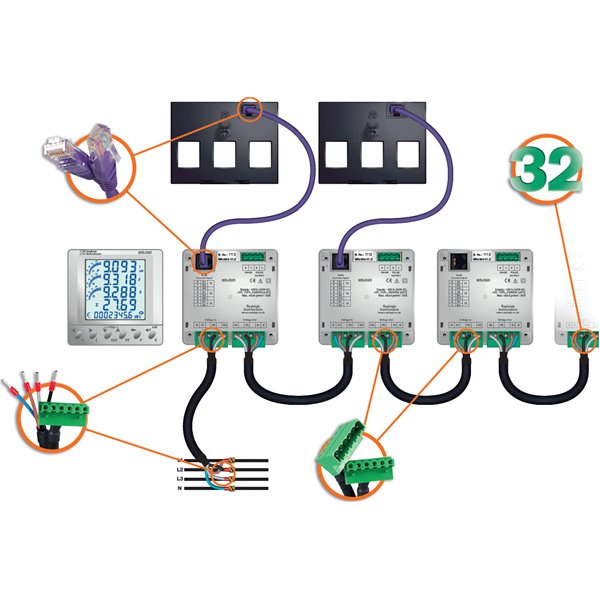

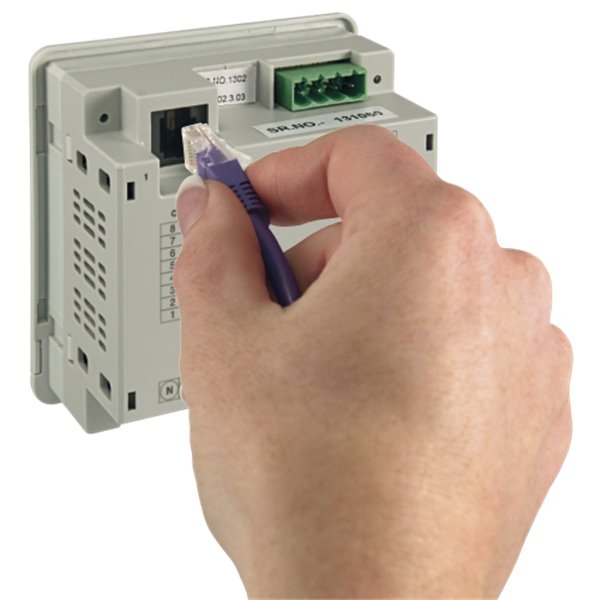

, input: 330 mV via EASYWIRE (RJ45)
, pulse output and RS485 ModBus

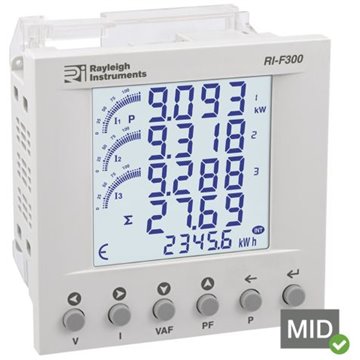

RI-F300-G-C -MID Multifunction Power MeterCertificate Number TCM 221/17-5466Flush mounting panel meter3 phase 4 wire network unbalanced loadBacklit LCD display with bar graph current indication on every pageActive energy class BReactive energy class 20.01…1(1.2A) (330mV meter input)Programmable CT ratio 1 to 6000A (Default 1:1A)Programmable VT ratio 100 to 600V (Default 1:1)Built in energy pulsed output and RS485 Modbus communicationsTHD up to 31st harmonic for voltage and currentSelectable CT phase rotation - L1 and L3 can be swappedSelf-supplied auxiliary from any phaseColour: Light Grey (RAL7035)IP54 (Front casing only). Supplied with rubber gasket
