Single-phase energy meter up to 100 VDC / 80 VAC and 50 A with Modbus RTU/RS485
Availability : 2-3 weeks
S6XM50A100VM
Single-phase energy meter up to 100 VDC / 80 VAC and 50 A with Modbus RTU/RS485
Availability : 2-3 weeks
S6XM50A100VM

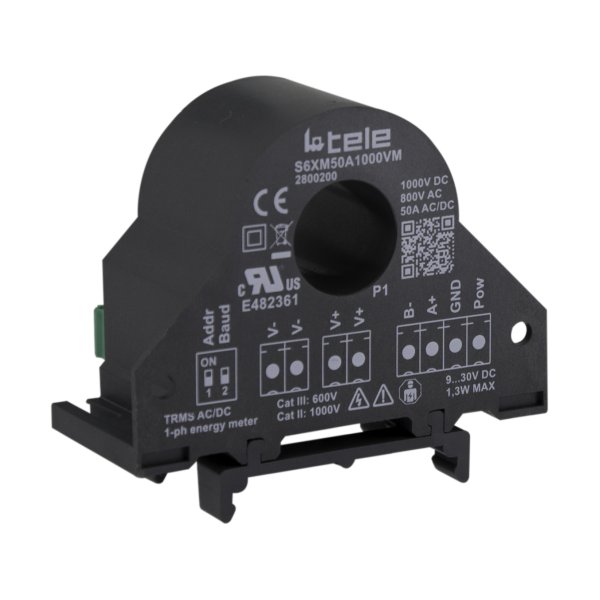

The S6XM50A1000VM is a compact single-phase energy meter designed for AC and DC measurements in industrial and energy-related applications. It supports measurements up to 80 VAC and 50 A or up to 000 VDC and 50 A and communicates via a Modbus RTU interface over RS485.
The device measures current, voltage, active power, reactive power, apparent power, frequency, power factor, peak values, total harmonic distortion (THD), and bidirectional energy consumption. This makes it suitable for energy management systems, photovoltaic installations, battery storage systems, EV charging infrastructure, and industrial monitoring applications.
With a supply voltage range of 9 to 30 VDC and DIN-rail mounting, the S6XM50A1000VM can be easily integrated into electrical panels and automation systems.
