Single-phase energy meter up to 100 VDC / 80 VAC and 300 A with Modbus RTU/RS485
Availability : 2-3 weeks
S9XM300A100VM
Single-phase energy meter up to 100 VDC / 80 VAC and 300 A with Modbus RTU/RS485
Availability : 2-3 weeks
S9XM300A100VM

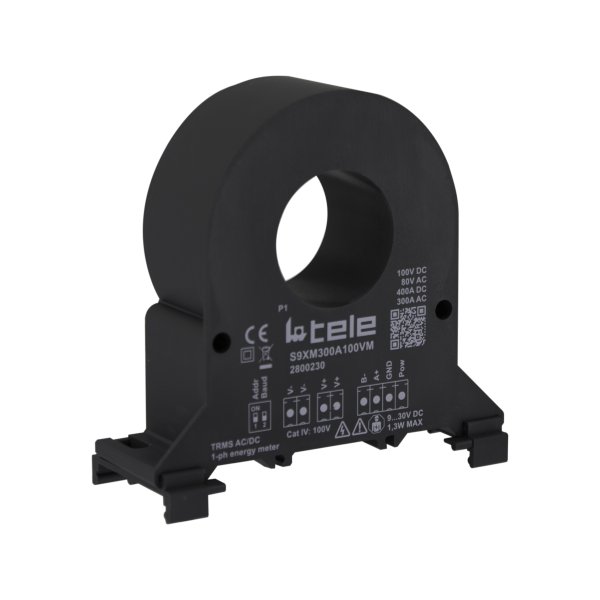

The S9XM300A100VM from the SensAct series is a compact single-phase energy meter designed for accurate AC and DC power monitoring in industrial installations, energy systems, and battery applications. It supports measurements up to 80 VAC and 300 A or up to 100 VDC and 400 A, providing a reliable solution for energy management and power analysis.
The meter measures current (Irms), voltage (Vrms), active power (W), reactive power (VAR), apparent power (VA), frequency, power factor (cos φ), peak values (Vpk, Ipk), total harmonic distortion (THD), and bidirectional energy consumption. This makes it ideal for battery storage systems, DC power distribution, EV charging infrastructure, renewable energy installations, and industrial monitoring applications.
The integrated Modbus RTU interface over RS485 enables seamless integration into SCADA, PLC, and energy management systems. With a supply voltage range of 9 to 30 VDC and DIN-rail mounting, the S9XM300A100VM can be quickly and easily installed in electrical control panels.
