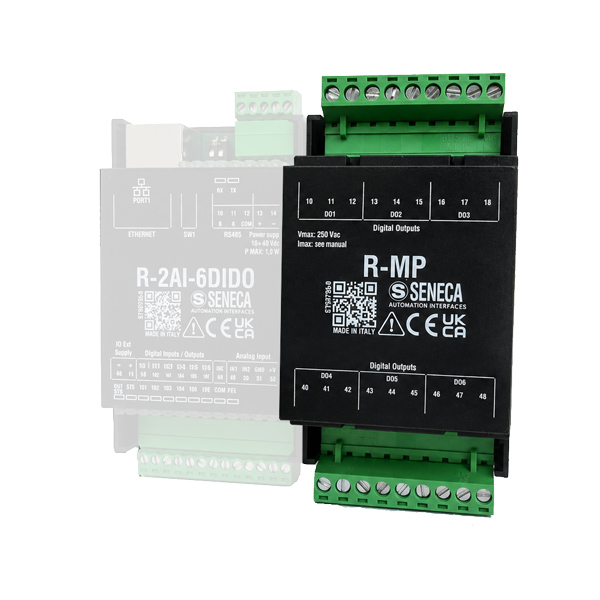

The R-MP-6RS-5-24 is a compact power module that expands the SENECA R-2AI-6DIDO, R-2AI-6DIDO-P and R-2AI-6DIDO-E modules with six solid-state relay outputs. Its direct plug-in design reduces wiring, saves cabinet space and simplifies installation.
The module features six removable SPDT solid-state relays rated at 5A and 24VDC, making it ideal for applications requiring fast switching, high reliability and maintenance-free operation. Front-accessible relays enable quick replacement when required.

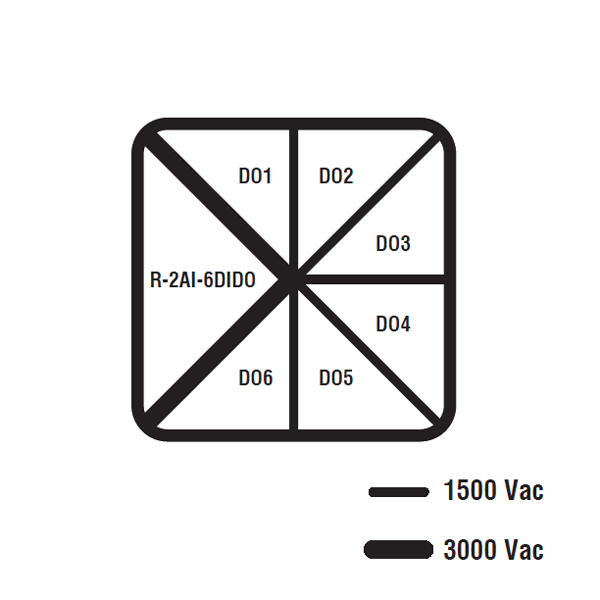

Offering insulation up to 3000VAC, DIN rail mounting according to IEC EN60715, IP20 protection and an operating temperature range from -30°C to +85°C, the R-MP-6RS-5-24 is well suited for industrial automation, machinery, building automation and energy management systems.
