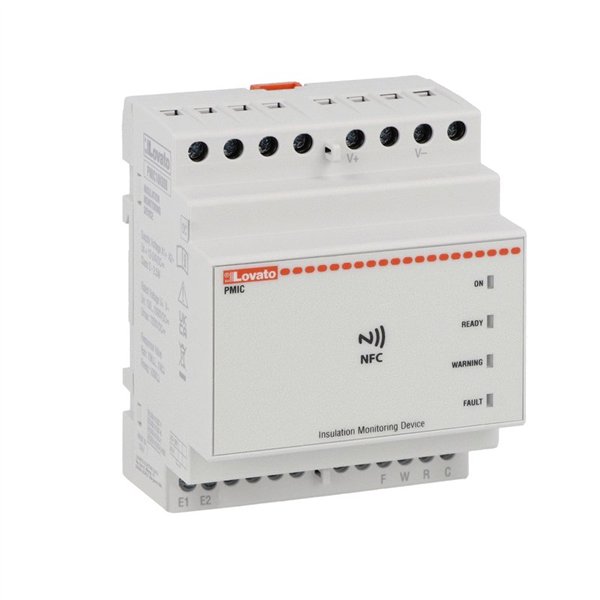

PMIC10K00B

1200VDC insulation monitoring device for DC IT systems with NFC configuration.

More details...

Availability : 2 weeks

Reference : PMIC10K00B

More info
Download

The LOVATO Electric PMIC10K00B is a compact insulation monitoring device (IMD) for continuous monitoring of insulation resistance in unearthed DC IT systems. It is designed for CCS DC charging applications up to 1200VDC. Configuration is performed wirelessly via NFC using a smartphone. The unit features three SSR outputs for Ready, Warning and Fault status indications and operates from a 12...24VDC auxiliary supply. Its compact 4-DIN enclosure requires no spacing between adjacent devices, allowing easy installation in electrical panels. The PMIC10K00B complies with IEC/EN 61557-8, IEC/EN 61557-18 (draft) and IEC 61851-23.
