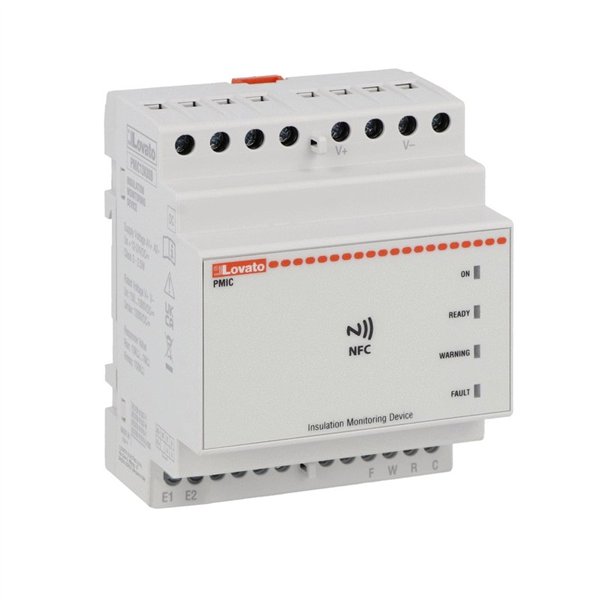

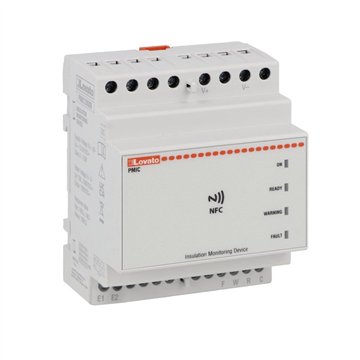

The LOVATO Electric PMIC13K00B is an insulation monitoring device (IMD) designed for continuous monitoring of insulation resistance in unearthed DC IT systems. It is intended for CCS DC charging infrastructures up to 1200VDC and combines a compact displayless design with advanced communication capabilities.
The built-in RS485 Modbus RTU interface enables seamless integration with PLCs, HMIs and energy management systems. Configuration is performed wirelessly via NFC using a smartphone. The device also features three SSR outputs for Ready, Warning and Fault status, a programmable digital input and a 12...24VDC auxiliary supply.
Its compact 4-DIN enclosure requires no spacing between adjacent devices, maximizing panel space while simplifying installation. The PMIC13K00B complies with IEC/EN 61557-8, IEC/EN 61557-18 (draft) and IEC 61851-23.
