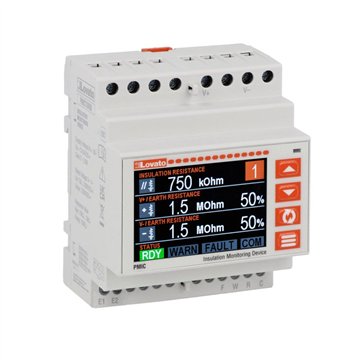

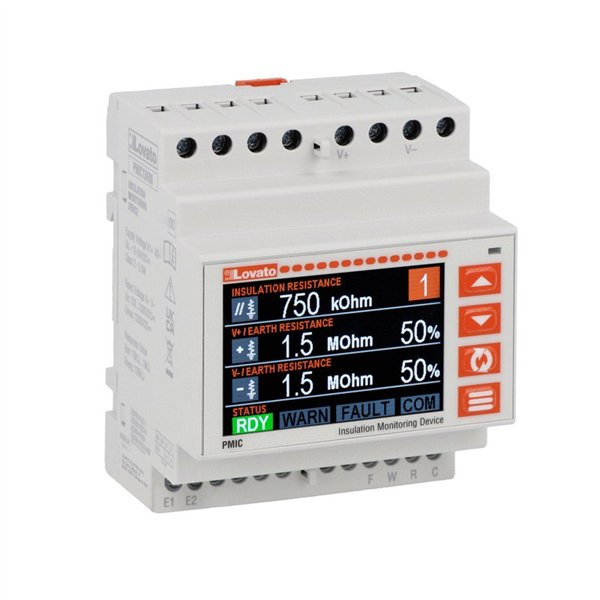

The LOVATO Electric PMIC13K00 is an insulation monitoring device (IMD) designed for continuous monitoring of insulation resistance in unearthed DC IT systems. It is suitable for CCS DC charging infrastructures up to 1200VDC.
The integrated graphical display provides immediate access to measured values, operating status and configuration parameters. The built-in RS485 Modbus RTU communication interface allows seamless integration with PLCs, HMIs and energy management systems. The device also features three SSR outputs for Ready, Warning and Fault status, a programmable digital input and a 12...24VDC auxiliary supply.
Its compact 4-DIN enclosure requires no spacing between adjacent devices, maximizing panel space and simplifying installation. The PMIC13K00 complies with IEC/EN 61557-8, IEC/EN 61557-18 (draft) and IEC 61851-23, making it suitable for modern DC charging applications.
